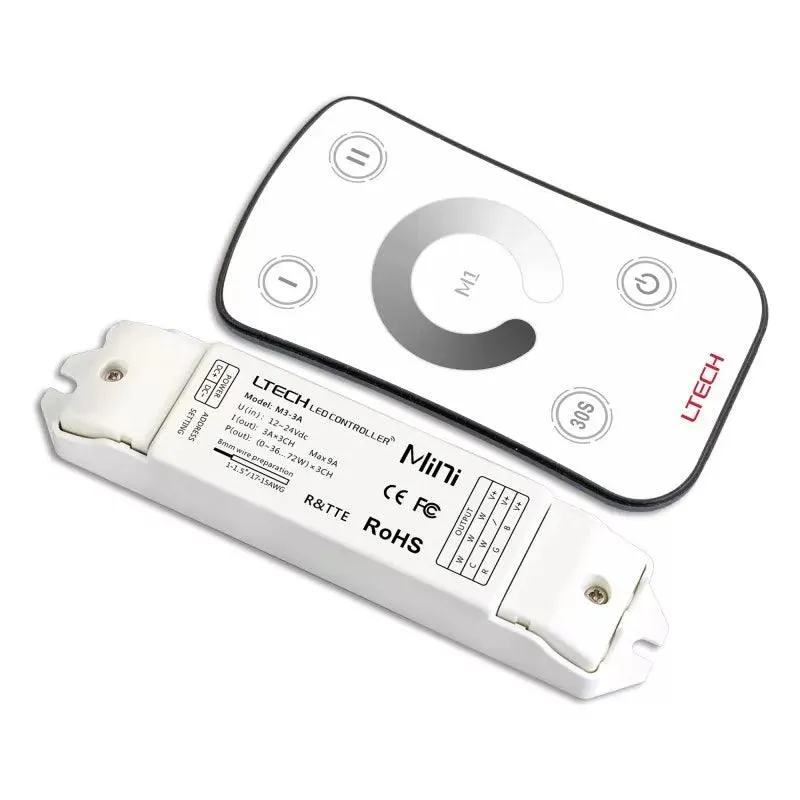

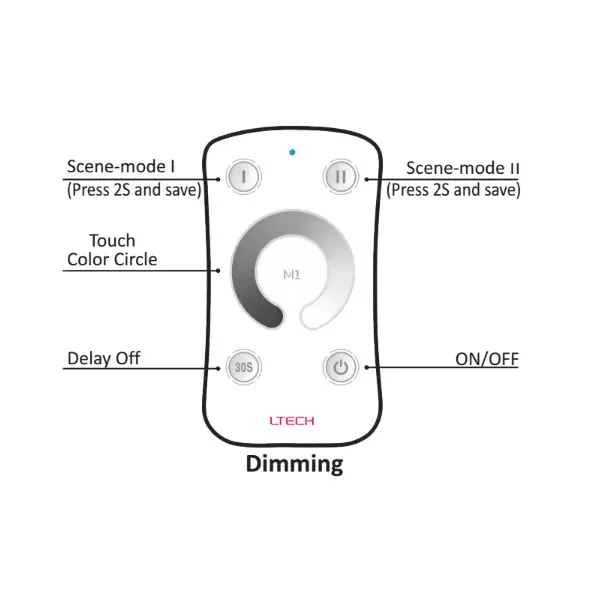

- M1 RF remote, easy for dimming monochrome LED lights in one touch
- Outstanding 4096/road greyscale with gentler lights and richer dynamic changing modes (most in the market is only 256)
- The versatile receiver can be paired and worked with up to 10 same or different Remotes ( for example M1, M2, M3, M5, M6, or M7)
- Automatic sleep mode (the remote automatically enter standby mode when untouched in 30 seconds)
- The remote has been paired to the Receiver in the package, easy to use
DATA SHEET:
| General | Product Type | Constant Voltage Driver |
| Length (mm) | 104 | |
| Width (mm) | 58 | |
| Height (mm) | 9 | |
| Housing Color | White | |
| Housing Material | Plastic | |
| Mounting | Surface mounted | |
| Weight (g) | 42 | |
| Wire Strip Length | 5mm | |
| Wire Type | 2.5mm2 | |
| Electronics | Input Domain | DC |
| Input Voltage | 12 ~ 24V DC | |
| Output Voltage | 12 ~ 24 V DC | |
| Output Current (mA) max/output | 3000 | |
| Output Current Max. (A) | 9 | |
| Output Power (W) | 108W @ 12V, 216W @ 24V | |
| Power Supply | N/A | |
| LED Outputs | 3 | |
| Lighting | Color Range | Single Color |
| Control | Output Signal | RF, PWM-CV |
| Control | Manual | |
| Remote Distance | 40m | |
| Zones | 1 | |
| Number of Channels | 1 | |
| Functions | programmable | |
| Protection | Reverse Polarity | Yes |
| LED Output Short | Yes | |
| Overload | Yes | |
| Restart after Protection | Yes | |
| Environmental | Operating Temperature | -20 ~ 55 °C |
| Ingress Protection | IP20 | |
| Environment | Indoor | |
| Other | Country of Origin | People's Republic of China |
| Approvals | CE | √ |
| FCC | FCC Part 15:2009 | |
| Warranty | Warranty | 5 Year |
| Weight & Dimensions | W x H x D (cm) | 6.00 x 1.00 x 10.40 |
| Weight (kg) | 0.04 |
